ROBO-INSTRUCT: Simulator-Augmented Instruction Alignment For Finetuning Code LLMs

Abstract

Code LLMs have shown promising results with converting tasks in natural language to programs that can be executed by service robots. We are interested in finetuning small, specialized LLMs for this purpose, but collecting datasets of task-program pairs specific to each robot is time-consuming and expensive. While approaches such as SELF-INSTRUCT and EVOL-INSTRUCT are capable of generating novel tasks given a few examples, they are unable to provide the corresponding programs that correctly abide by physical-world and robot-constraints using the provided programming interface. Using a simulator is a natural potential solution to checking for such constraints, but building simulation environments that can handle arbitrary tasks and their necessary objects and locations, is challenging. To address these challenges, we introduce ROBO-INSTRUCT, which synthesizes task-specific simulation environments on the fly during program execution, by opportunistically inferring entity properties and enforcing corresponding constraints based on how the entities are used in the task program. Additionally, ROBO-INSTRUCT integrates an LLM-aided post-processing procedure to refine instructions for better alignment with robot programs. We demonstrate the effectiveness of ROBO-INSTRUCT across multiple LLMs, showing that our fine-tuned models outperform all baseline methods and even match or surpass the performance of several larger and proprietary models.

Verifying Programs Against Domain-specific Constraints

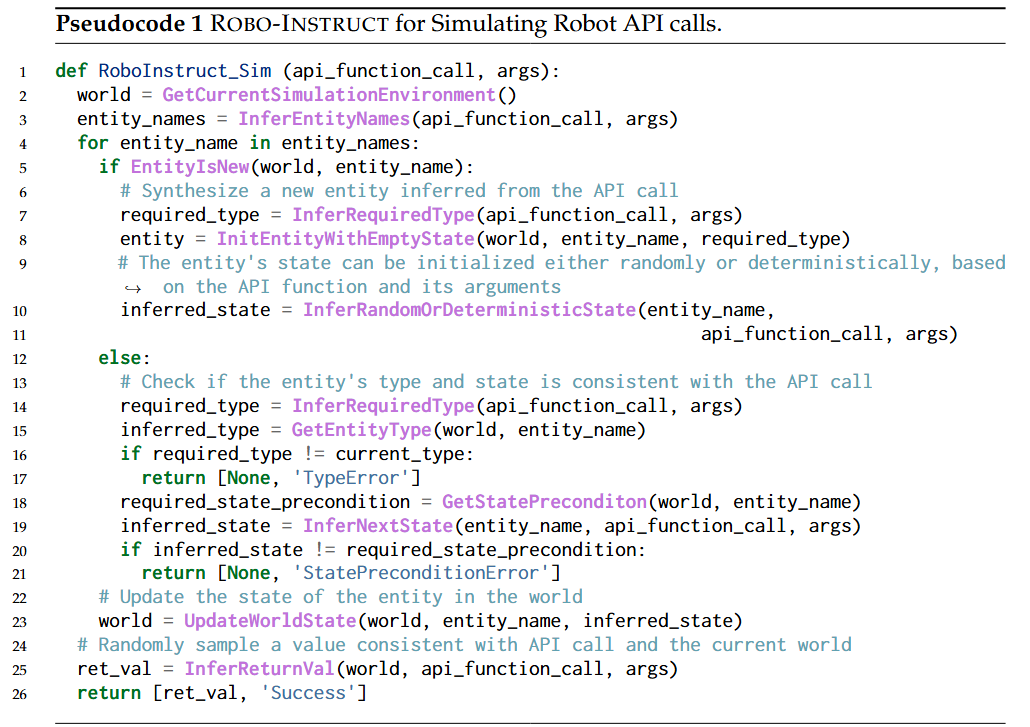

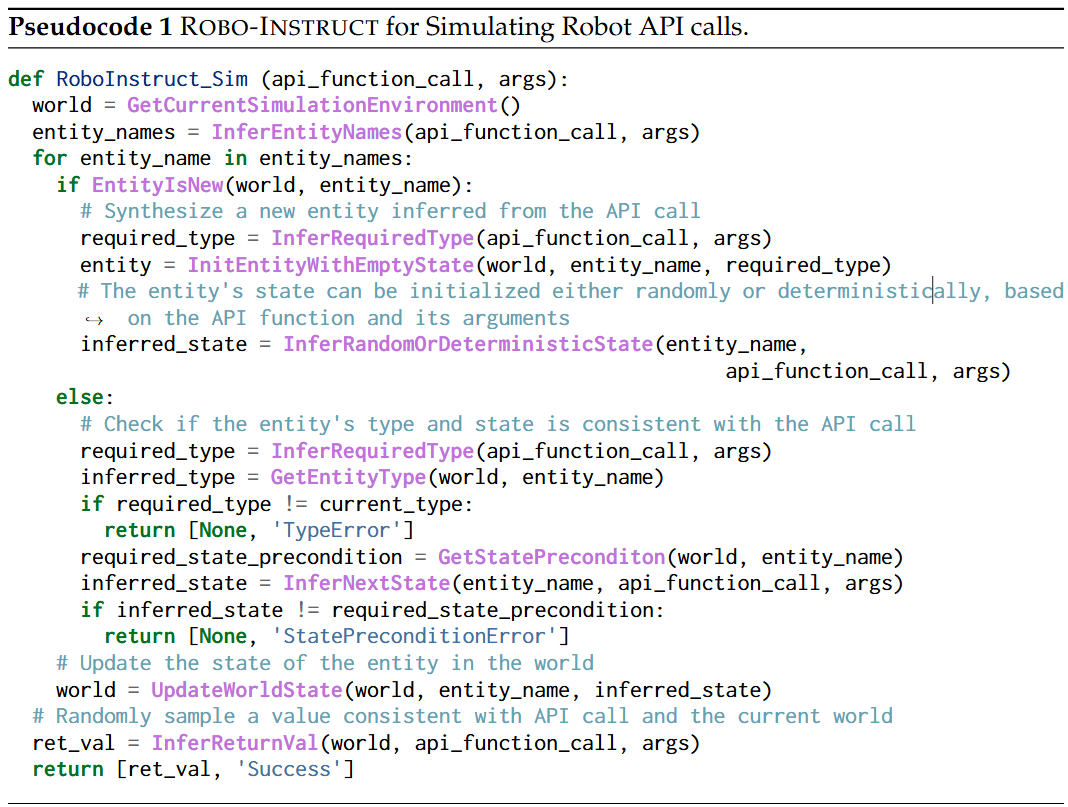

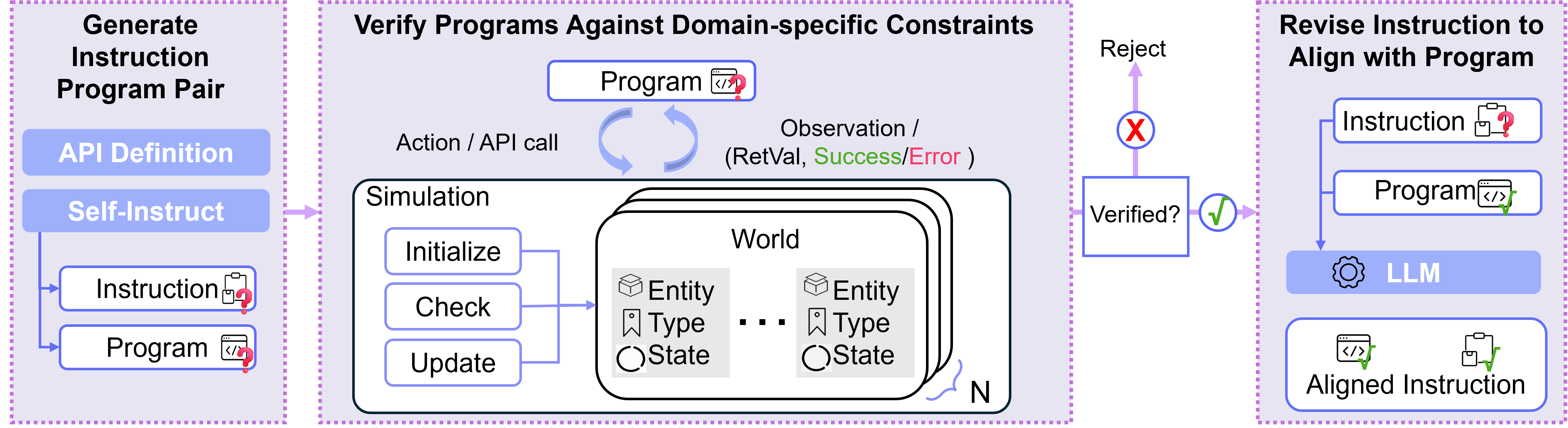

ROBO-INSTRUCT generates task and robot program pairs as training data to fine-tune open-weight LLMs for domain-specific service robot tasks. ROBO-INSTRUCT first uses SELF-INSTRUCT to propose novel tasks. For each task, using in-context learning, it prompts a LLM to generate a candidate program to perform the task using the robot APIs in the given context. Then ROBO-INSTRUCT verifies the candidate program by synthesizing a simulation environment on-the-fly as API functions are executed (See Pseudocode 1). When the simulator catches violations of domain-specific constraints, it rejects the candidate program and re-prompts the LLM for a new candidate program. If the program successfully terminates with no simulation failures, ROBO-INSTRUCT synthesizes additional simulation environments (up to a pre-defined limit) to check for the correctness of the candidate program from different initial configurations and environmental states. ROBO-INSTRUCT is thus able to catch candidate programs that are not robust to environmental variations.

Algorithm

The algorithm is built around three core concepts essential for service robots to reason about:

1. Different entities, e.g., "apple", "kitchen".
2. The type of the entities, and hence their affordances, e.g., "apple" is an object, you can pick it up; "kitchen" is a location, you can go to it, and it contains objects.
3. The state of the entities in the world, e.g., the "apple" is in the "kitchen".

These concepts are closely tied to the robot APIs, where each API invocation during program execution updates the simulation environment. For example, the go\_to(loc) action takes only entities of type location as arguments, and executing it changes the state of the robot to be at the new location.

Example

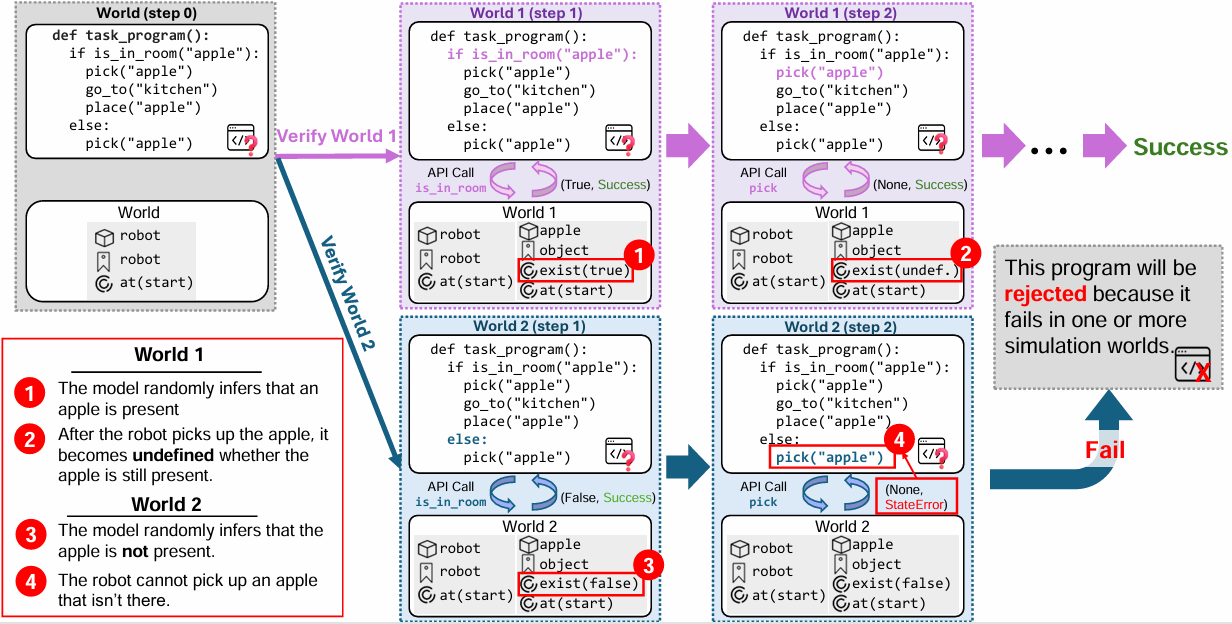

Illustration of ROBO-INSTRUCT executing a task program while incrementally building the simulation environment. The environment starts with only the robot’s initial position (gray, step 0). As the program runs, it branches into two possible execution paths. To evaluate each path, two simulation environments are sampled (world 1 and world 2). In this example, the program fails because it attempts to pick up an apple that isn’t present.

LLM-aided Instruction-Program Alignment Procedure

Synthetic Program Execution Failure Analysis

Inference Latency Comparison

Citation

@misc{hu2024roboinstruct,
      title={ROBO-INSTRUCT: Simulator-Augmented Instruction Alignment For Finetuning Code LLMs},
      author={Zichao Hu and Junyi Jessy Li and Arjun Guha and Joydeep Biswas},
      year={2024},
      eprint={2405.20179},
      archivePrefix={arXiv},
      primaryClass={cs.CL}
}
