BEV-Patch-PF: Particle Filtering with
BEV-Aerial Feature Matching for
Off-Road Geo-Localization

Dongmyeong Lee1, Jesse Quattrociocchi2, Christian Ellis2, Rwik Rana1,
Amanda Adkins1, Adam Uccello2, Garrett Warnell2, Joydeep Biswas1

1University of Texas at Austin, 2DEVCOM Army Research Laboratory
arXiv Code Data

TartanDrive2.0

Demonstration on the TartanDrive 2.0 dataset using an ATV in off-road terrain.

UT-SARA-GQ Dataset

Demonstration in the Grace Quarters environment with a Clearpath Warthog, handling canopy and shadows.

Abstract

We propose BEV-Patch-PF, a GPS-free sequential geo-localization system that integrates a particle filter with learned bird's-eye-view (BEV) and aerial feature maps. From onboard RGB and depth images, we construct a BEV feature map. For each 3-DoF particle pose hypothesis, we crop the corresponding patch from an aerial feature map computed from a local aerial image queried around the approximate location. BEV-Patch-PF computes a per-particle log-likelihood by matching the BEV features to the aerial patch features.

On two real-world off-road datasets, our method achieves 7.5x lower absolute trajectory error (ATE) on seen routes and 7.0x lower ATE on unseen routes compared to a retrieval-based baseline, while maintaining accuracy under dense canopy and shadow. The system runs in real time at 10 Hz on an NVIDIA Tesla T4, enabling practical robot deployment.

Overview

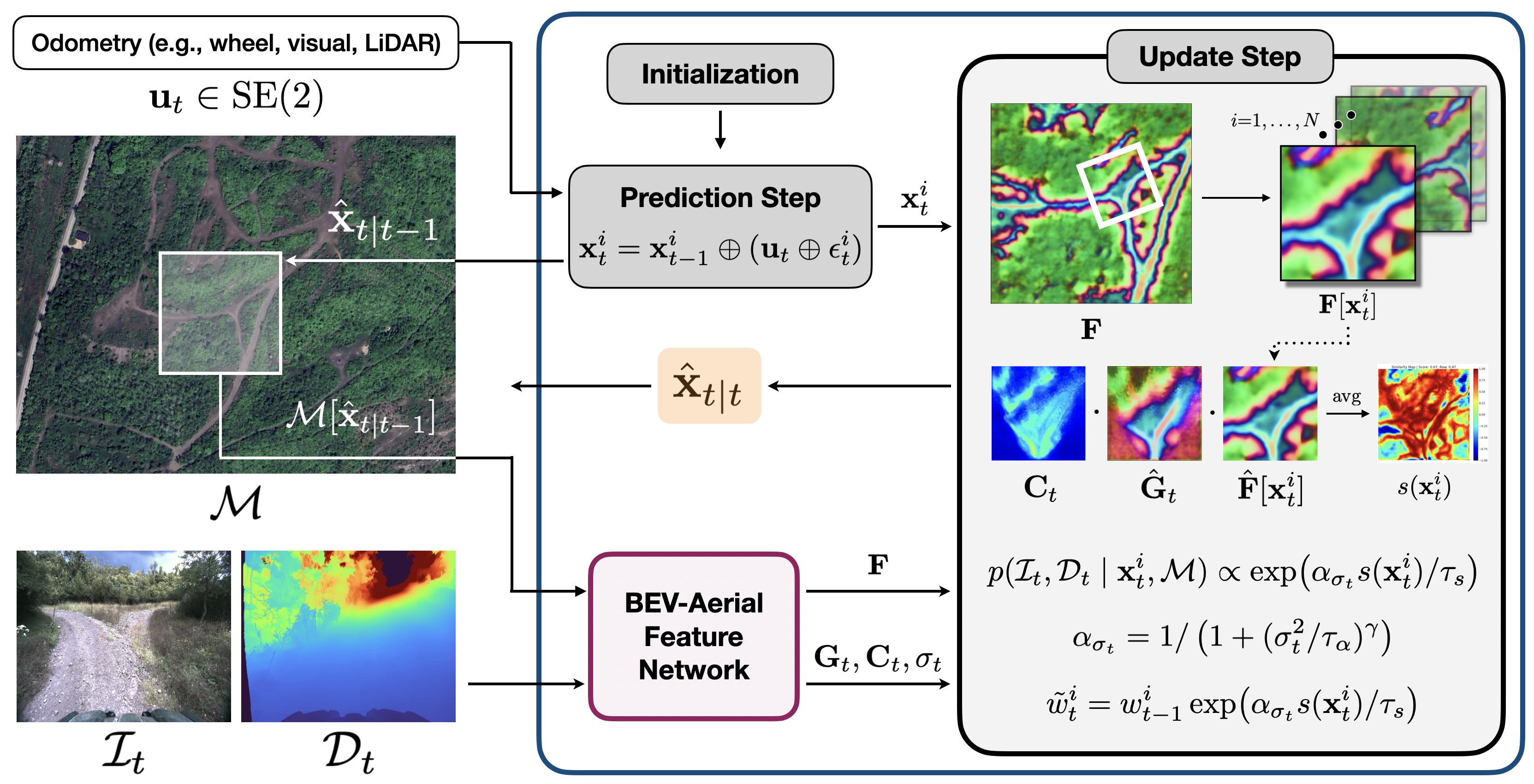

Overall Pipeline

Pipeline Overview

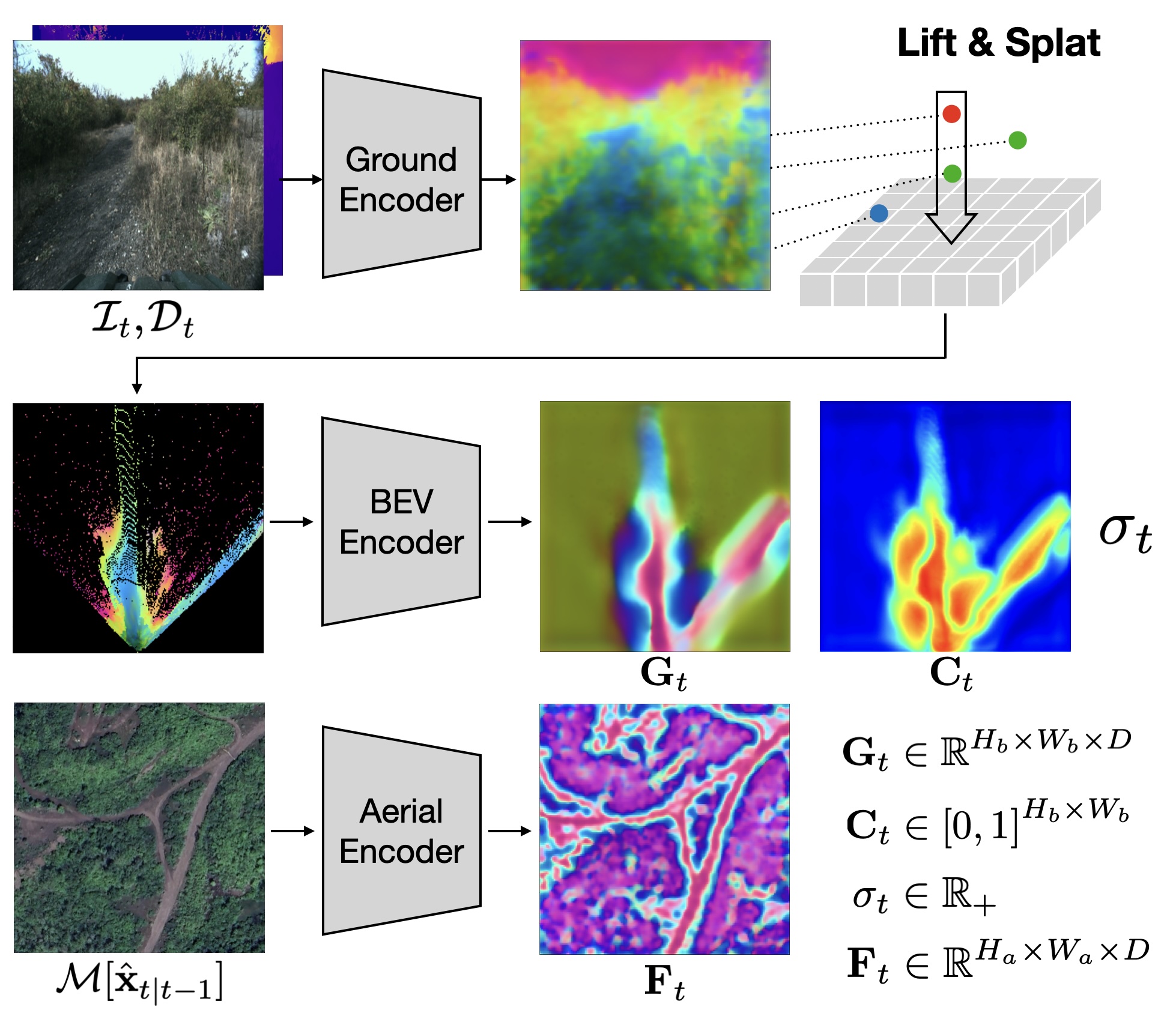

Network Architecture

BEV-Aerial Feature Network Architecture

BEV-Patch-PF evaluates each particle hypothesis xti by matching a patch F[xti] cropped from the local aerial feature map F against the robot's bird's-eye-view (BEV) feature G.

Urban Park

Real-time deployment in a local urban park using a Clearpath Jackal (equipped with a Tesla T4).

Campus

Real-time deployment on a university campus using a 1:8 scale high-speed vehicle (equipped with a Jetson AGX Orin).

Acknowledgments

This work is partially supported by the ARL SARA (W911NF-24-2-0025 and W911NF-23-2-0211). Any opinions, findings, and conclusions expressed in this material are those of the authors and do not necessarily reflect the views of the sponsors.
